Ladder Cable Tray Manufacturers in Chennai
When electrical cables need to travel across long distances within a facility, the support structure must accommodate their weight while keeping the routing accessible for inspection. Ladder cable trays serve as a good configuration for projects requiring more than one cable, especially where ventilation and accessibility are necessary factors. There are cable tray options available from companies like SteelMan, who can provide you with a solution to your search for Ladder Cable Tray Manufacturers in Chennai.

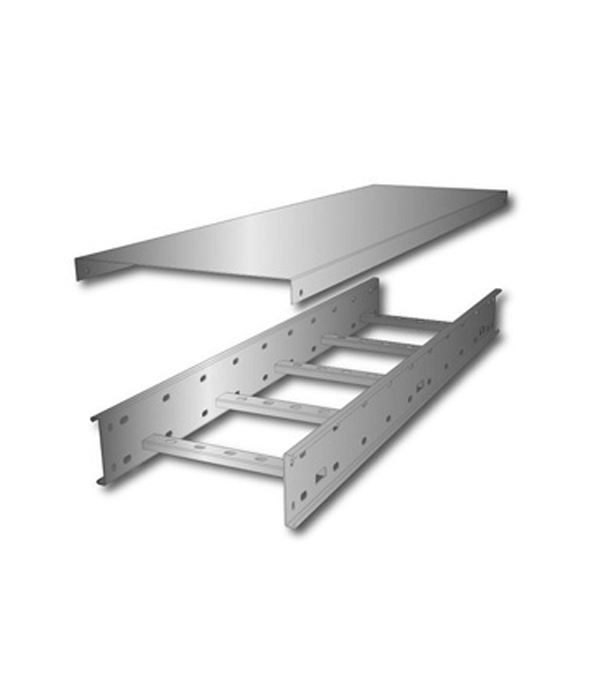

The construction of the ladder cable trays involves the use of two side rails and cross rungs in between them. In this way, the cables will be supported with proper air circulation around them and easy accessibility for installation.
Supporting Long Cable Routes
In industrial and commercial operations, there are large facilities that need cables to be installed between electrical panels, machines, control systems, and distribution systems. Without structured support, these connections can create a challenge in finding and maintaining cables. Ladder cable trays are used to create set paths, where cables can be passed along the desired path within the facility.
They can be usefully applied in installations where heat dissipation and convenient access are issues, particularly if the installation is open. But the size of the tray, spacing between the supports, and loading capacity should be chosen in accordance with the project design. The careful planning of the route also allows bends, changes of level, and interfaces with other components of the cable management.
Key Characteristics of Ladder Cable Trays
- Open Construction: This is a rung-based construction that provides good ventilation around cables that are supported and easy access for installation.
- Cable Accessibility: Maintenance or inspection of the cable runs is possible without the need to work in an enclosed tray base.
- Structured Routing: Side rails and cross rungs provide a structured route for organizing cables on specific sections.
- Flexible Layout Planning: Configurations can be chosen based on the length of the route, the number of cables, and the installation needs.
- Application-Specific Selection: Tray dimensions, materials, and support arrangements can be evaluated to suit the operating environment.
Applications Across Industrial and Commercial Facilities
In cases where it is necessary to have cables supported continuously in a planned route, ladder cable trays may be employed in electrical installations.
Manufacturing Facilities
They can help to establish pathways between production machinery and control panels and electrical equipment.
Power Distribution Areas
If the power distribution area is suitable, the cable runs for the power distribution equipment can be organised using suitable ladder tray systems.
Warehouses
Planned tray routes can be used to control the electrical connections throughout the service areas and equipment zones in large buildings.
Cables Trays
They are useful for managing electrical systems in commercial complexes where there are several electrical systems that need to be organized.
Infrastructure Projects
Depending on project specifications, ladder cable trays may be used in utility areas and other installations requiring structured cable support.
Choosing Suitable Ladder Cable Tray Specifications
A ladder cable tray is the appropriate choice for the technical requirements of the installation. The number of cables, combined weight, routing distance, and environmental exposure all affect the product selection.
- Tray Width and Depth: Take into account the number and dimensions of the cables that should be stored in the space.
- Load Requirements: Ensure the expected load weight is taken into consideration, and the tray and support structure will be able to safely hold it.
- Material and Finish: Consider moisture, corrosion, temperature, and other site restrictions when choosing material and surface finish.
- Support Spacing: Plan for support spacing based on the recommendations from the tray manufacturer and project engineering.
- Route Configuration: Take into account horizontal runs, vertical sections, bends, and connection points to ensure a practical cable pathway.
- Future Requirements: If expansion is expected, determine if the proposed layout will be able to incorporate more cables without violating the system’s design parameters.
Engineering Design and Logo Customisation
There are installations that need cable tray configurations that work for a given layout or dimension of the project. When considering the various options for cables, SteelMan offers engineering design and logo customisation services for customers to discuss their needs.
Providing technical drawings, necessary dimensions, material preferences, and estimated cable loads provides a clear application. The conditions for installation and the requirements for the finish should also be discussed prior to the final specification. Customers are able to discuss logo customisation options in the product enquiry.
Why Consider SteelMan for Ladder Cable Trays?
Choosing a cable tray solution is about the appropriate solution fit for the installation and not the looks of the product. SteelMan’s cable tray range provides the opportunity for customers to investigate the various designs that they need for their cable management needs; engineering design and logo customisation options can be discussed.
Plan Your Cable Management with SteelMan
Choosing the right ladder cable tray helps create an organised pathway for electrical wiring while supporting accessibility and maintenance across industrial and commercial installations. SteelMan offers cable tray solutions along with engineering design and logo customisation services to address different project requirements. If you are looking for Ladder Cable Tray Manufacturers in Chennai, consider your cable load, installation layout, material preferences, and required dimensions before finalising your selection. Contact SteelMan today to discuss your project specifications and explore suitable ladder cable tray solutions for your electrical installation.
